Festool

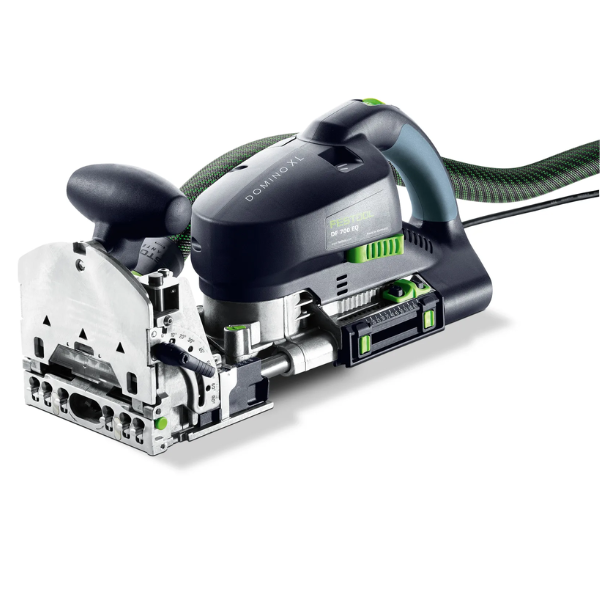

Festool, DOMINO Joiner DF 700 EQ-Set US DOMINO XL, 576431

Festool, DOMINO Joiner DF 700 EQ-Set US DOMINO XL, 576431

$2,379.00 CAD
$2,379.00 CAD
Sale Sold out

Select Set

• DOMINO Joiner DF 500 Q-Set DOMINO, 576423

The DOMINO XL offers a more elegant solution to the challenge of large-scale joinery. The amazingly simple to use, fast, and accurate DOMINO XL now complements the capabilities of the original DOMINO DF 500, with a maximum tenon size of about five and a half-Inch in length (140 mm). No job is too big for the DOMINO XL, with an expanded range of thicker and longer tenons you can quickly and precisely join massive slabs, doors and gates, or construct the most durable of tables and beds.

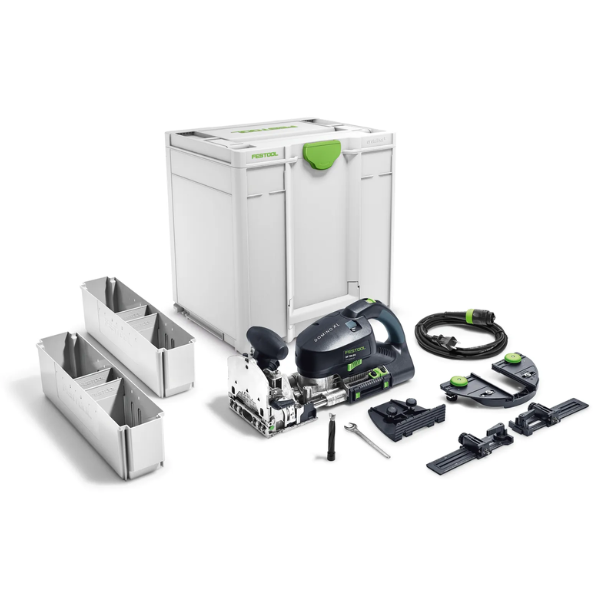

Contains

  • DOMINO Cutter, D 12-NL 70 HW-DF 700
  • Support Bracket, ZA-DF 500/700
  • Trim Stop, LA-DF 500/700
  • Cross Stop, QA-DF 500/700
  • Open Ended Spanner, WAF 12
  • Dowel Box
  • Plug it-Power Cord, SJO 18 AWG-4
  • Systainer³, SYS3 M 437

More Details

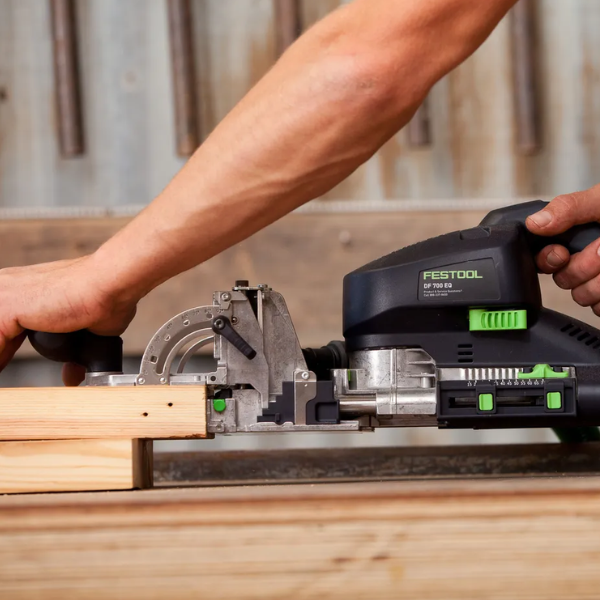

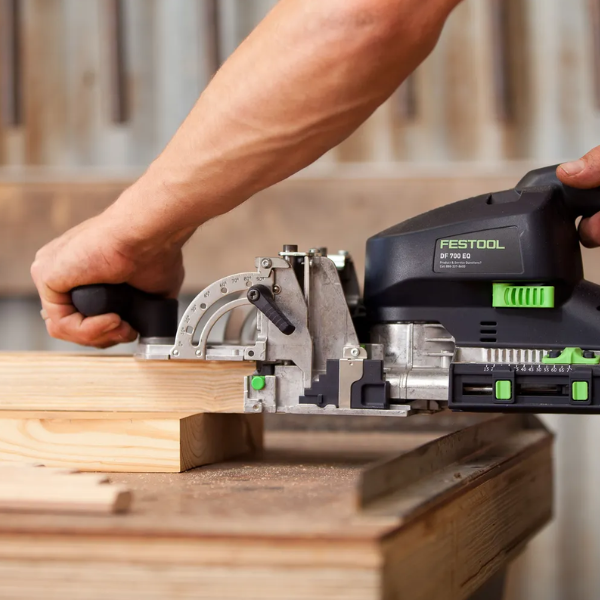

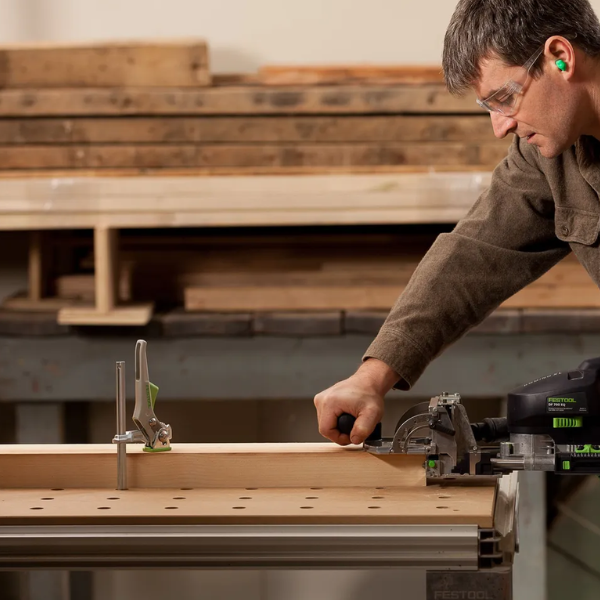

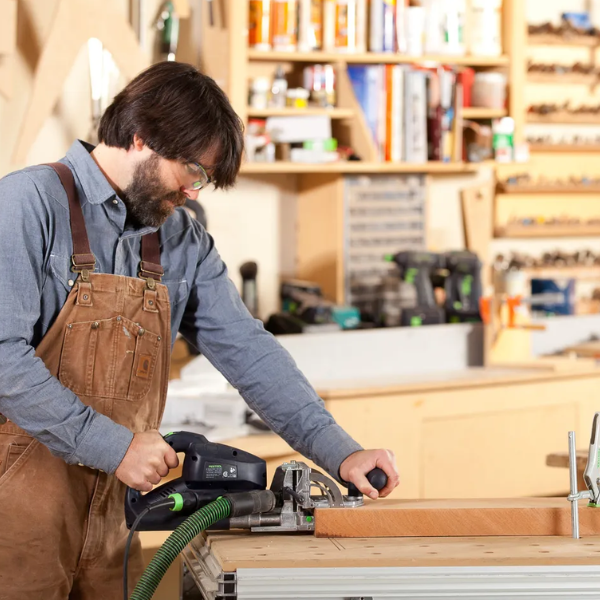

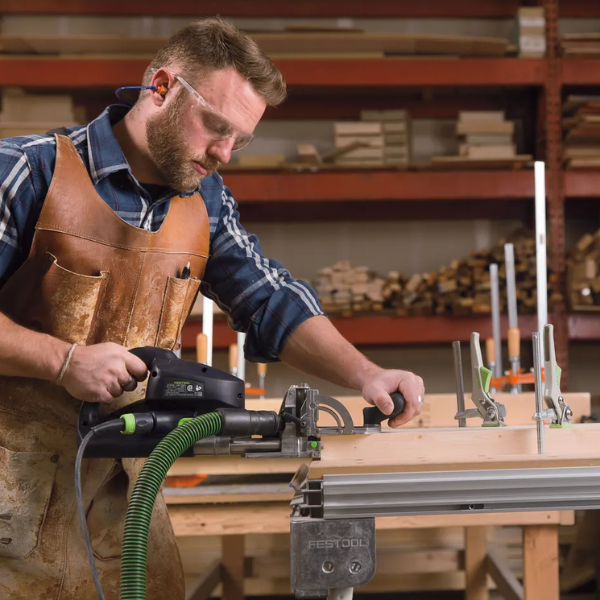

With the DOMINO XL, you’ve got a system light and nimble enough for use anywhere in the shop or on the jobsite. When the work piece is too large to come to the machine, this makes all the difference. Precision placement of solid hardwood tenons guarantees not only a perfect fit, but a finished product that will last for generations.

  • Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time
  • Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels

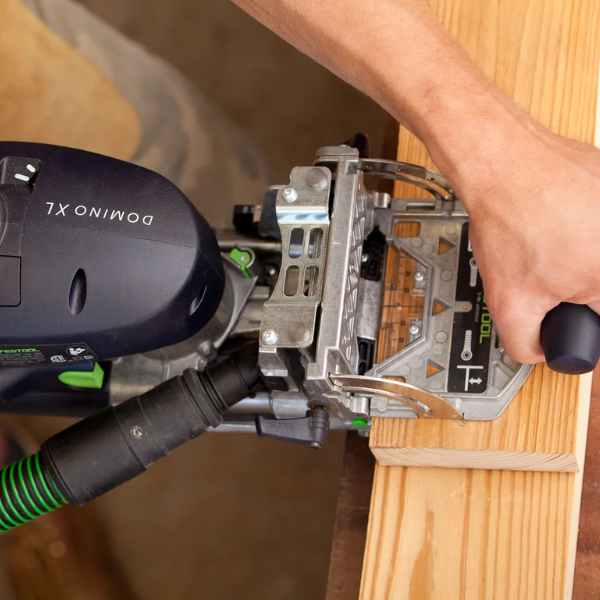

  • Indexing pins for quick alignment against the edge of the work piece for accurate placement
  • Tenons up to approximately 5-1/2-Inch in length for large scale projects
  • Includes optional trim and cross stops for narrow stock and edge joining

Technical Data

  • Idle engine speed: 21 000 RPM
  • Mitre routing: 0 - 90 °
  • Max. routing depth: 2-3/4" (70 mm)

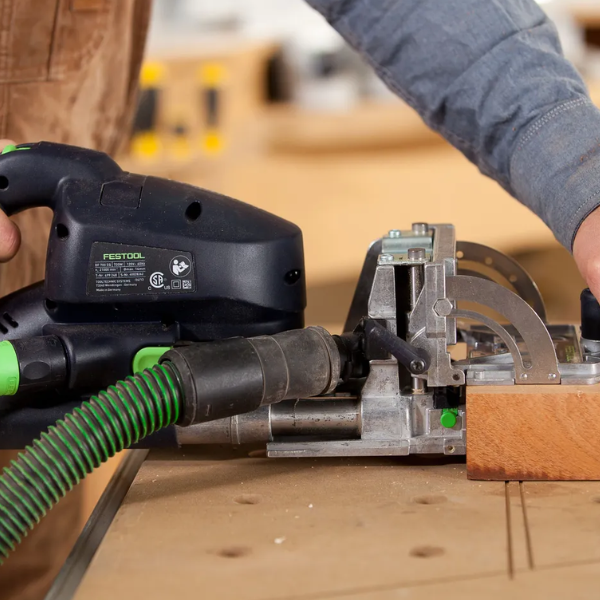

  • Dust extraction connection dia.: 1-1/16" (27 mm)
  • Weight: 11.46 lbs (5.5 kg)
  • Drive type: 120 VAC
  • Routing height adjustment: 3/8" (10 mm) - 1-15/16" (50 mm)
  • Cable length: 13.123 ft (4 m)
  • DOMINO slot cutter dia.: 5/16" (8 mm)/3/8" (10 mm)/1/2" (12 mm)/9/16" (14 mm)
  • Power consumption: 720 watt

Warranty All-inclusive

Enjoy comprehensive services with our warranty all-inclusive. 1 year of warranty with the purchase of your tool. 2 more years for free if you register within 30 days of purchase.
