Festool

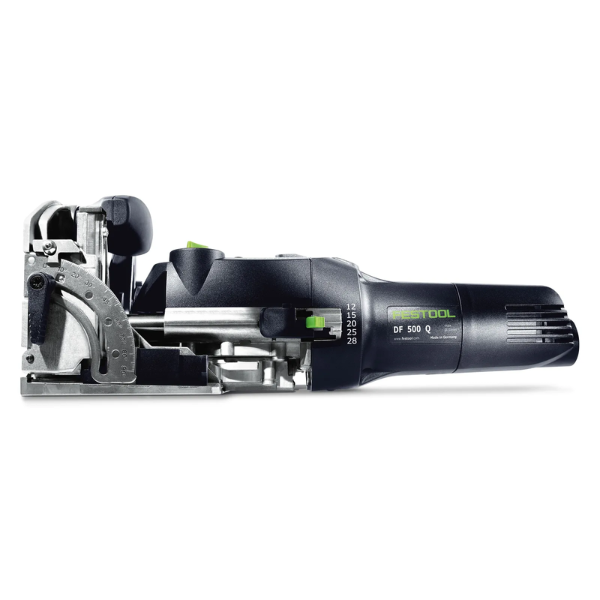

Festool, DOMINO Joiner DF 500 Q-Set DOMINO, 576423

Festool, DOMINO Joiner DF 500 Q-Set DOMINO, 576423

$1,725.00 CAD
$1,725.00 CAD
Sale Sold out

Select Set

• DOMINO Joiner DF 700 EQ-Set US DOMINO XL, 576431

DOMINO Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining

  • Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.

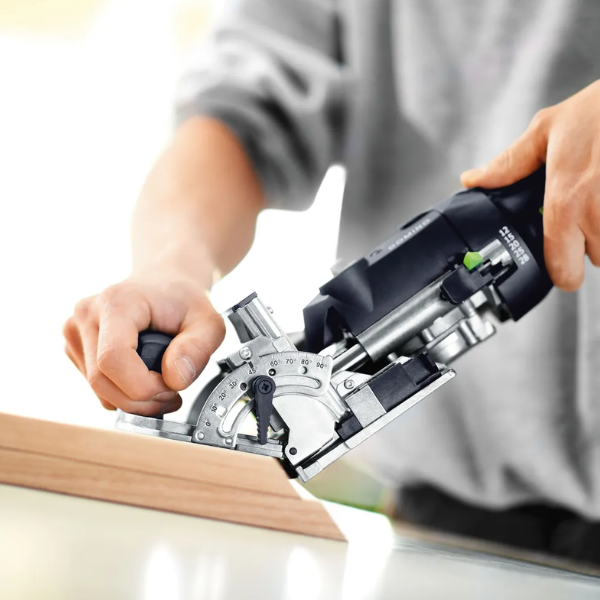

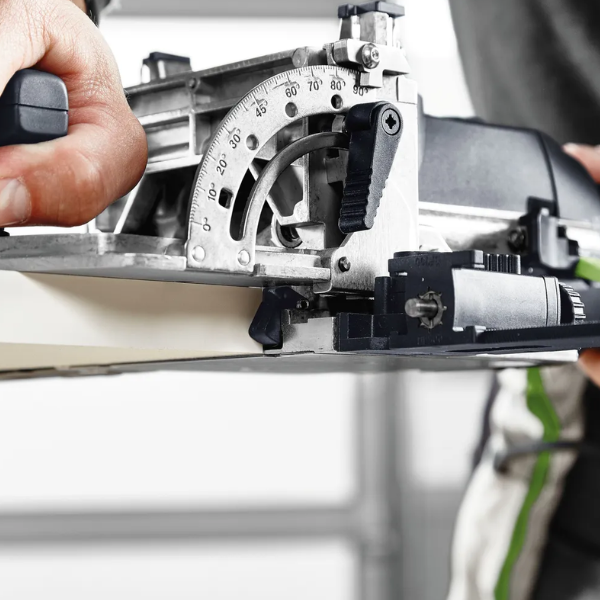

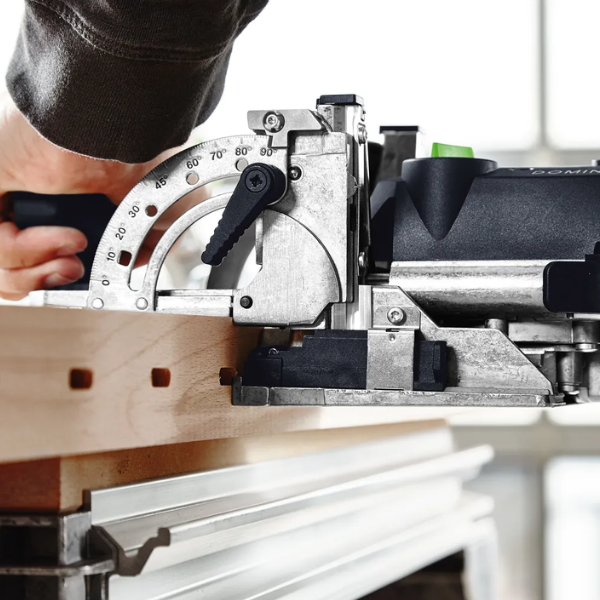

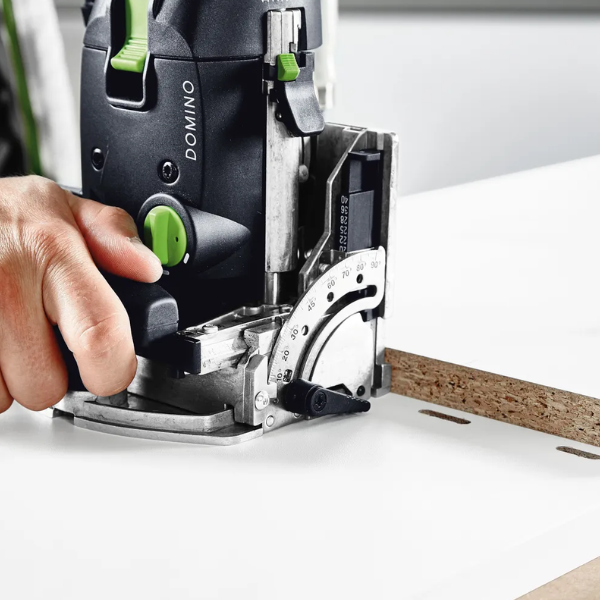

  • Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.

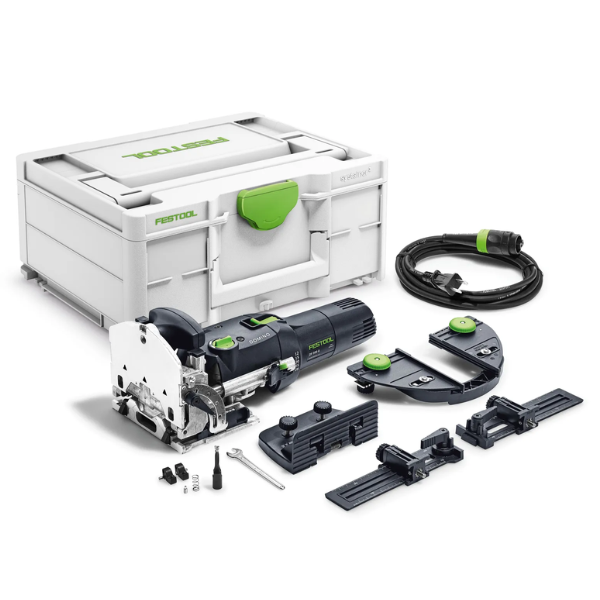

Contains

  • DOMINO Cutter, D 5-NL 20 HW-DF 500
  • Support Bracket, ZA-DF 500/700

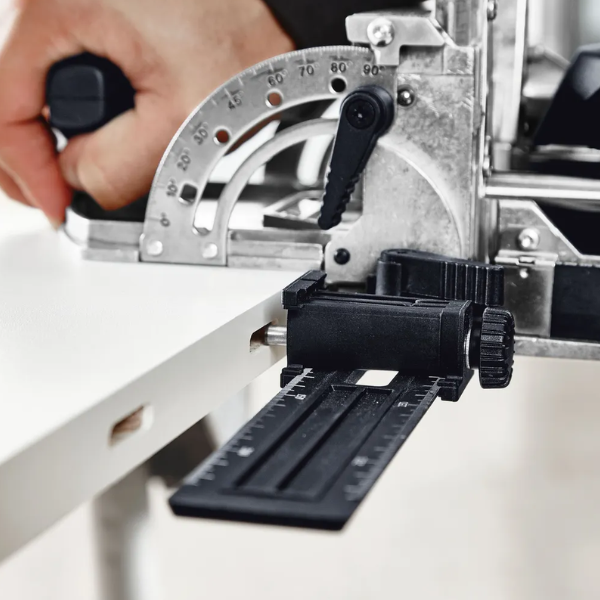

  • Trim Stop, LA-DF 500/700
  • Cross Stop, QA-DF 500/700
  • Open Ended Spanner, WAF 8
  • Plug it-Power Cord, SJO 18 AWG-4
  • Systainer³, SYS3 M 187

Technical Data

  • Idle engine speed: 21 000 RPM
  • Mitre routing: 0 - 90 °
  • Max. routing depth: 2-3/4" (70 mm)

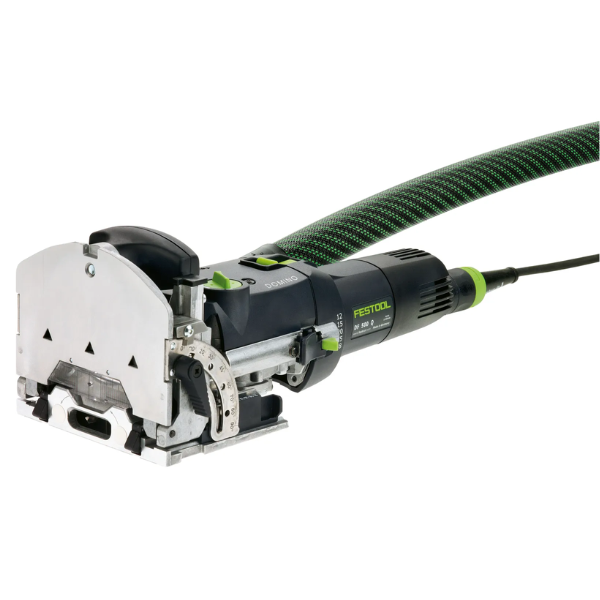

  • Dust extraction connection dia.: 1-1/16" (27 mm)
  • Weight: 11.46 lbs (5.5 kg)
  • Drive type: 120 VAC
  • Routing height adjustment: 3/8" (10 mm) - 1-15/16" (50 mm)
  • Cable length: 13.123 ft (4 m)
  • DOMINO slot cutter dia.: 5/16" (8 mm)/3/8" (10 mm)/1/2" (12 mm)/9/16" (14 mm)
  • Power consumption: 720 watt

Warranty All-inclusive

Enjoy comprehensive services with our warranty all-inclusive. 1 year of warranty with the purchase of your tool. 2 more years for free if you register within 30 days of purchase.
