Graco

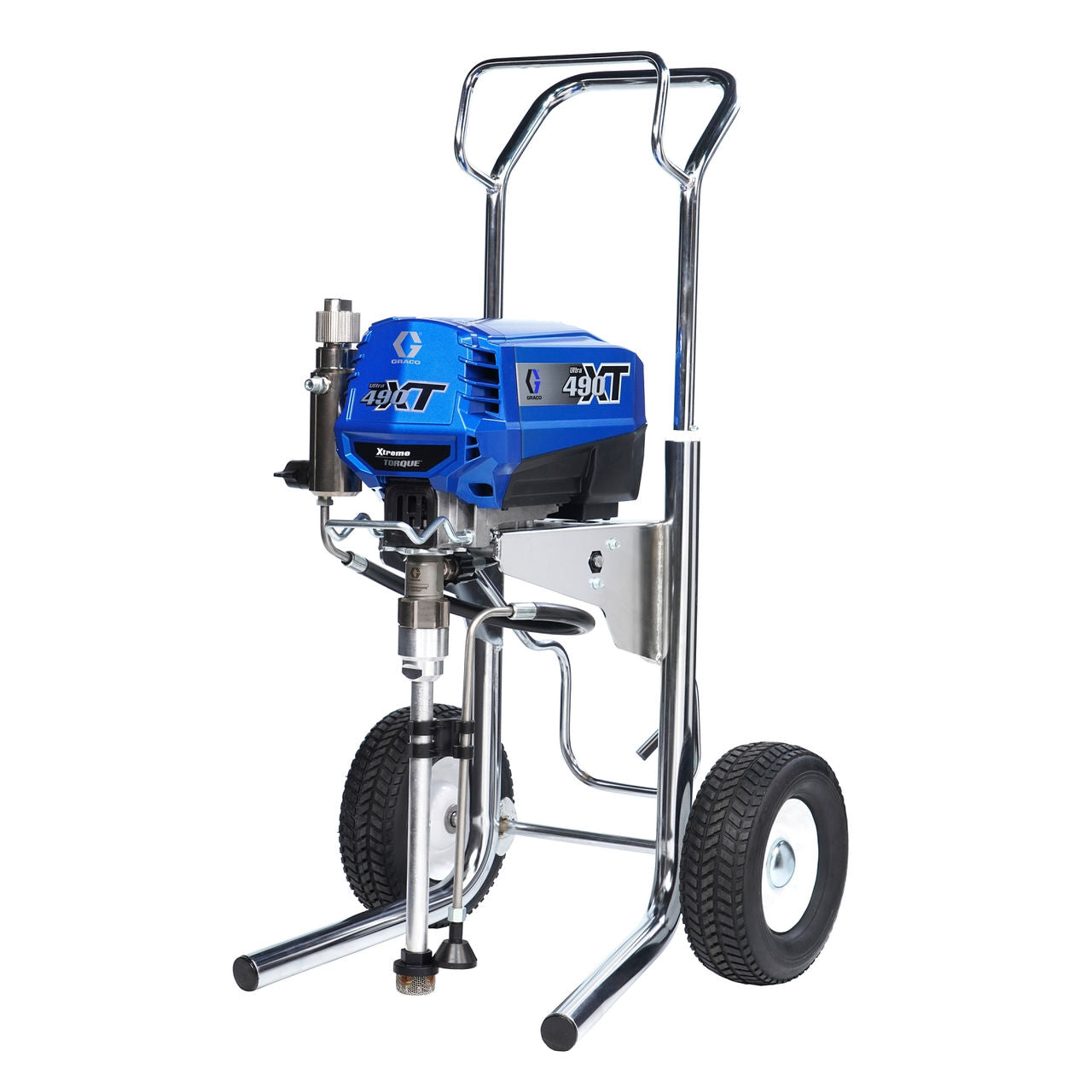

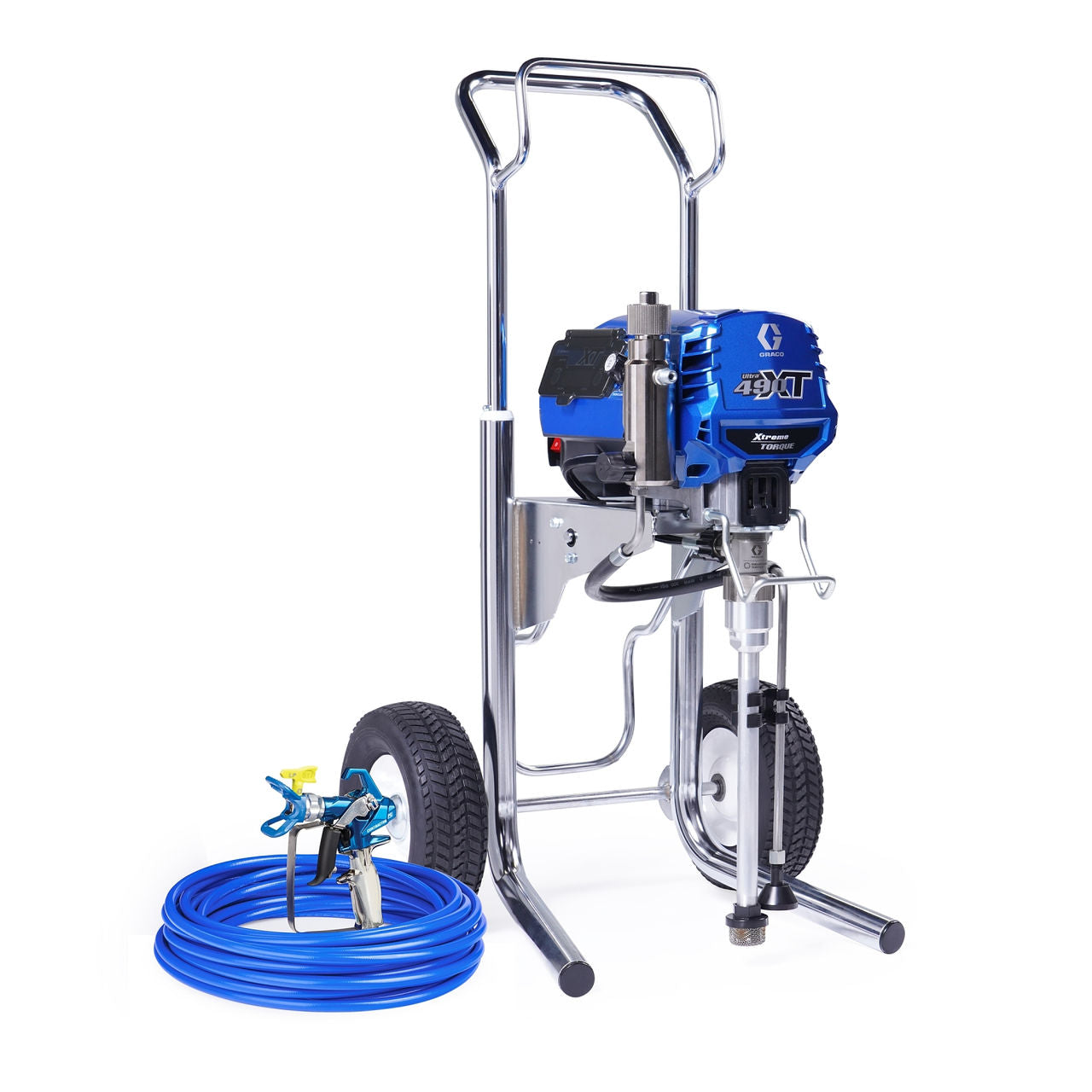

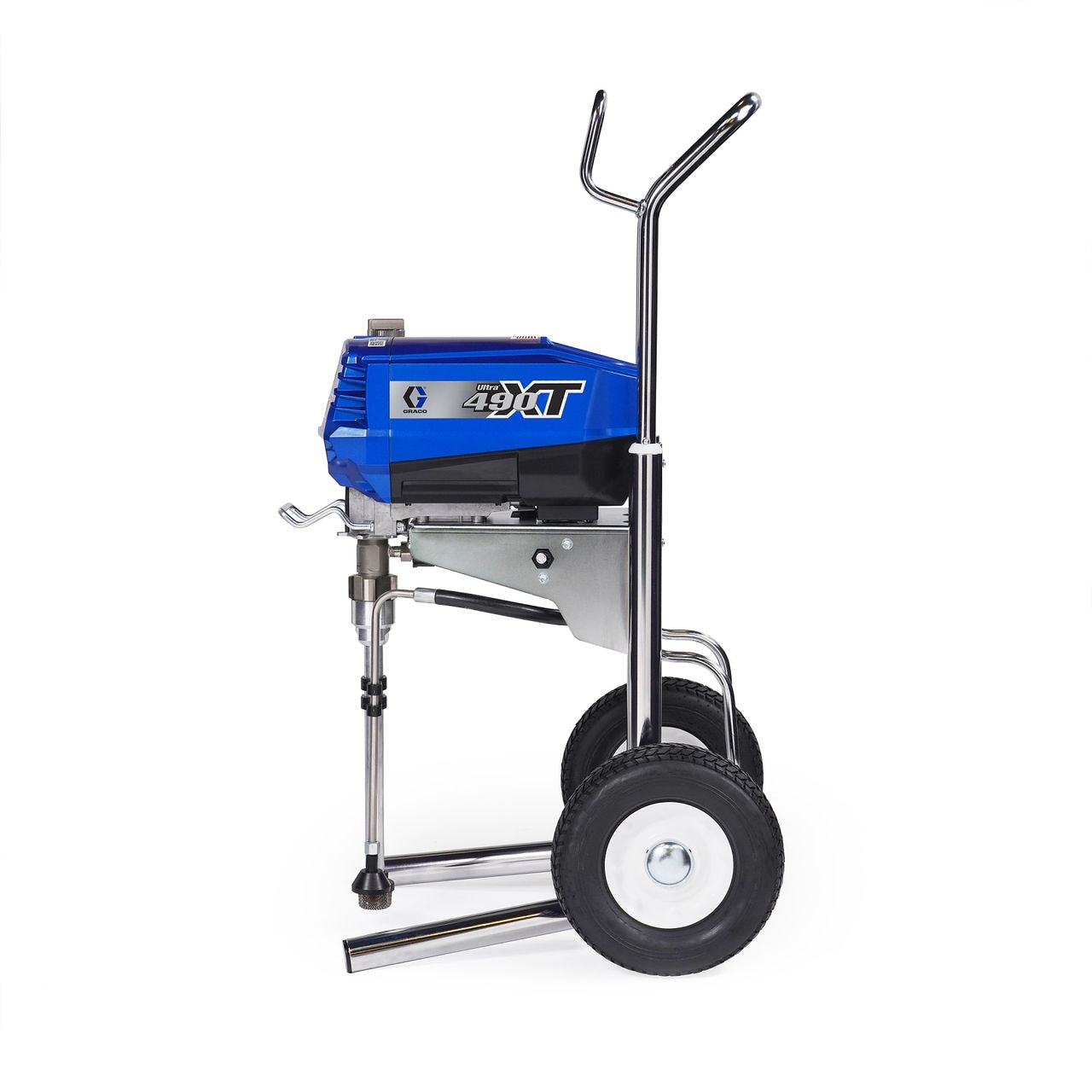

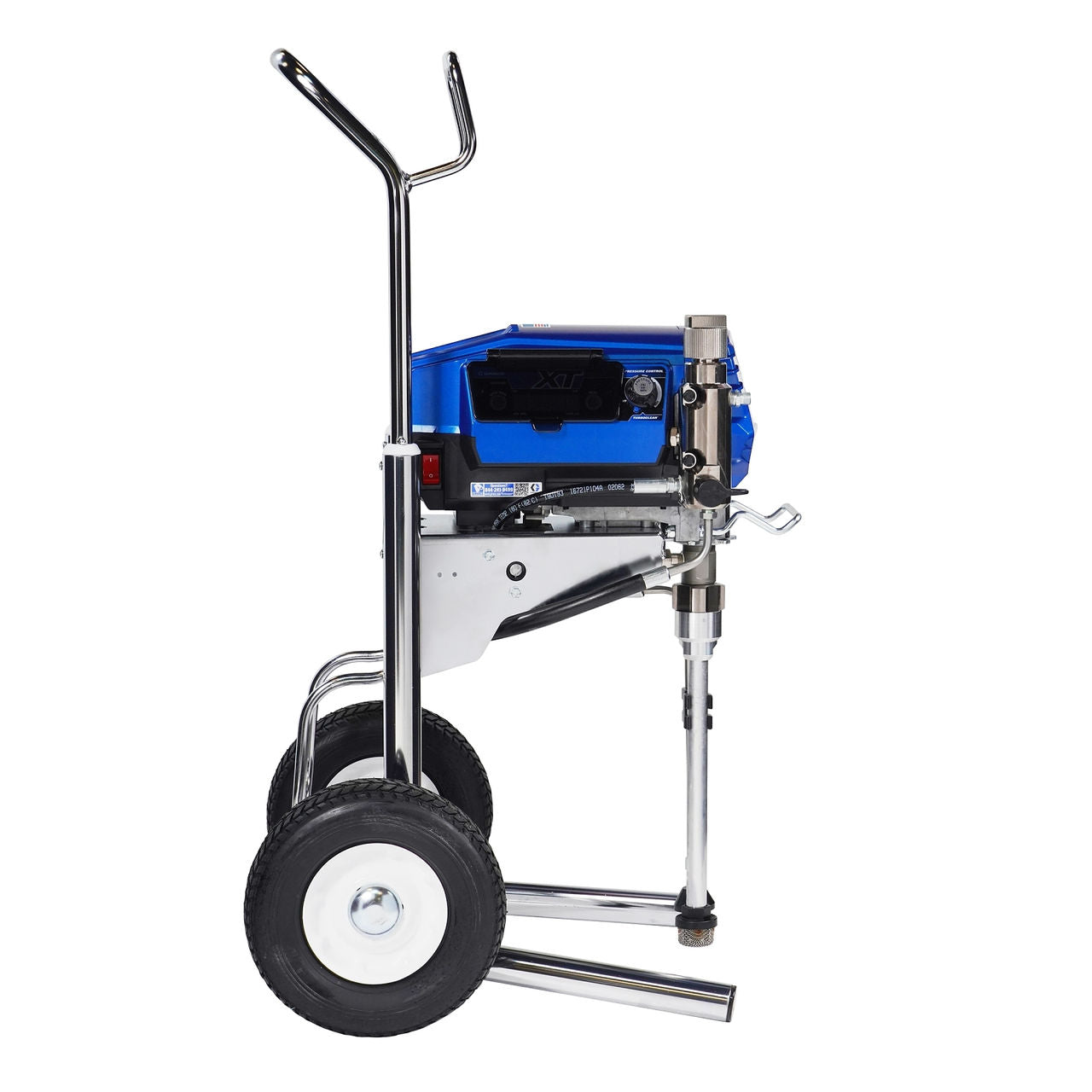

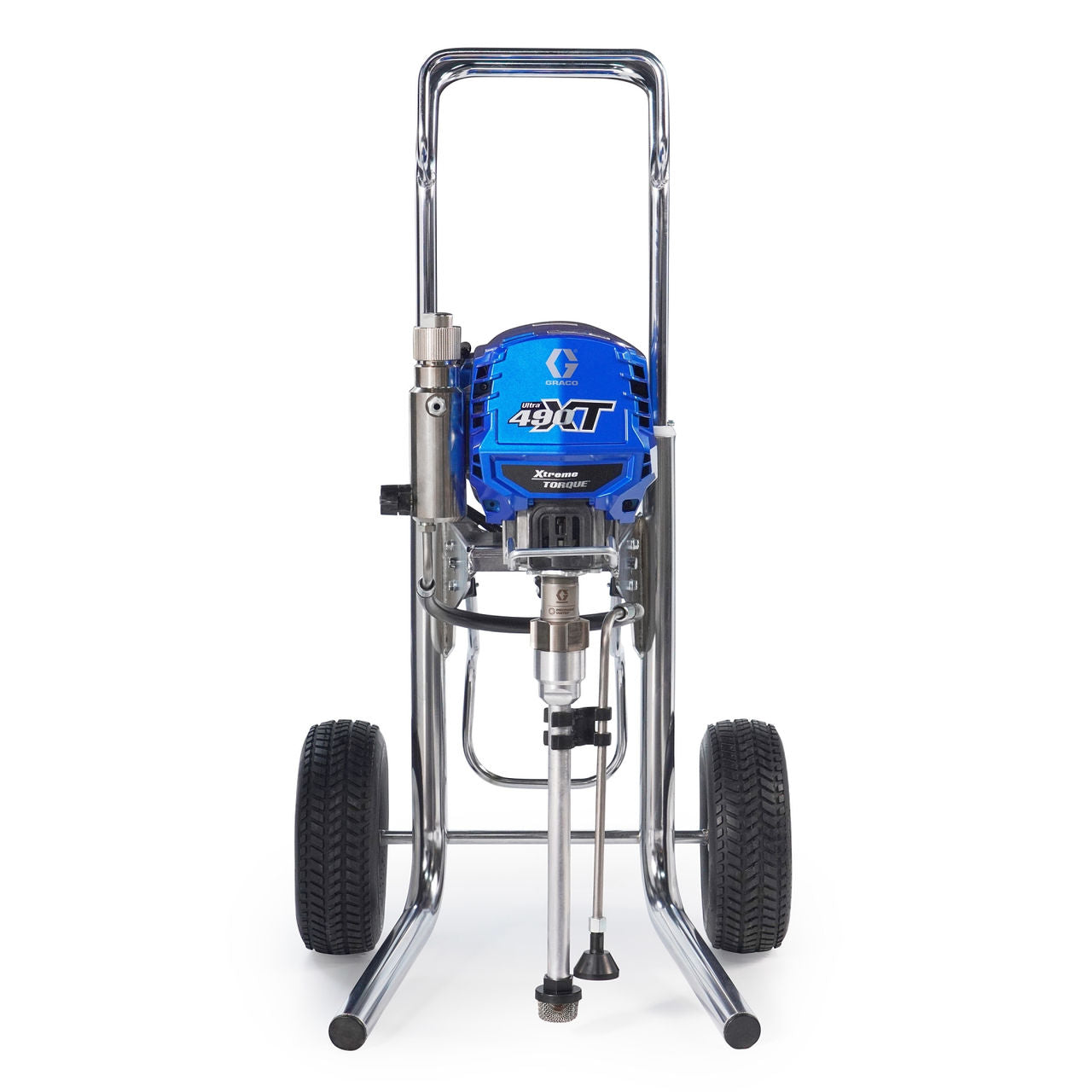

Ultra 490 XT Electric Airless Sprayer, Hi-Boy, 19D521

Ultra 490 XT Electric Airless Sprayer, Hi-Boy, 19D521

$3,389.00 CAD
$3,389.00 CAD
Sale Sold out
The Ultra 490 XT delivers an airless spray experience like no other. Featuring a 1.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class, the Ultra 490 XT is sure to become a staple in your fleet.

Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.

Features

Xtreme Torque Motor Technology

  • 15X more torque than traditional motors
  • 8X more magnets provide unmatched power and performance
  • 90% lower running speeds extend motors life
  • Up to 10X quieter

Rapid-Response Pressure Control

  • Instantly responds to deliver the best finish quality
  • More performance across its full tip size range
  • Industry's largest operating pressure range (50-3,300 psi)

Selectable Performance Modes

  • Two selectable spray modes offer unique performance levels to boost efficiency on every job
  • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 - 2,000 psi)
  • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)

Easy-to-Read LED Digital Display

  • Visible in even the toughest spraying conditions

Endurance Vortex Piston Pump with ProConnect

  • Endurance Vortex Rod lasts 3X longer than the closest competitor
  • ProConnect Pump Removal for fast on-the-job service

TurboClean Cleaning System

  • Industry’s fastest pump cleaning system
  • Delivers 3X faster cleaning with 1/2 the water
  • Convenient location

WatchDog Pump Protection

  • Prevents damage by shutting off pump when it's time to refill

Durable Filtration

  • Easy Out Filter provides easy maintenance and less clogging

Easy Transport

  • Only 31 lbs (Stand)

Gun, Hose and Tip Included

  • Contractor PC Gun & RAC X LP 517 SwitchTip

What's Included?

1ea - 50' Hose

1ea - Contractor PC Gun & RAC X LP 517 SwitchTip

Warranty

30-Day Guarantee, 1-Year Warranty, 3-Year Battery and Charger Warranty provided by DeWALT *Return freight charges apply.
View full details

Other Frame Configuration

Electric Airless Sprayer, Stand, Lo-Boy, Hi-Boy

Ultra 490 XT Electric Airless Sprayer, Hi-Boy, 19D521

Frequently Asked Questions

Who is the Ultra 490 XT Hi-Boy designed for (19D521)?

This sprayer is ideal for professional contractors who need maximum spraying power, mobility, and uptime on large-scale residential, commercial, or industrial jobs. The Hi-Boy cart design makes it easy to roll over rough terrain, stairs, and jobsite obstacles while keeping the pump elevated and protected.

What makes this sprayer unique?

The Ultra 490 XT Hi-Boy delivers 15X more torque than traditional motors with Xtreme Torque Motor Technology, runs at 90% lower speeds for extended life, and operates up to 10X quieter. It also features Rapid-Response Pressure Control for an instantly consistent spray pattern, two selectable performance modes for efficiency, and the Endurance Vortex Piston Pump—the longest-lasting pump in its class.

How do the selectable performance modes work?

  • Low Pressure Mode (50–2,000 psi) – Saves paint, reduces overspray, and improves control for detail work and fine finishes.
  • High Pressure Mode (500–3,300 psi) – Delivers maximum flow and coverage for heavy coatings and large projects.

What is WatchDog Pump Protection?

WatchDog automatically shuts off the pump when the paint supply runs low, preventing costly dry-run damage to your equipment.

Is this easy to clean?

Yes. The TurboClean Cleaning System is the fastest in the industry—3X quicker and uses 50% less water. The Easy Out Filter also helps prevent clogs and makes maintenance simple.

What types of paint can I use with it?

It can spray interior and exterior latex, primers, stains, enamels, water-based coatings, and solvent-based materials with ease.
