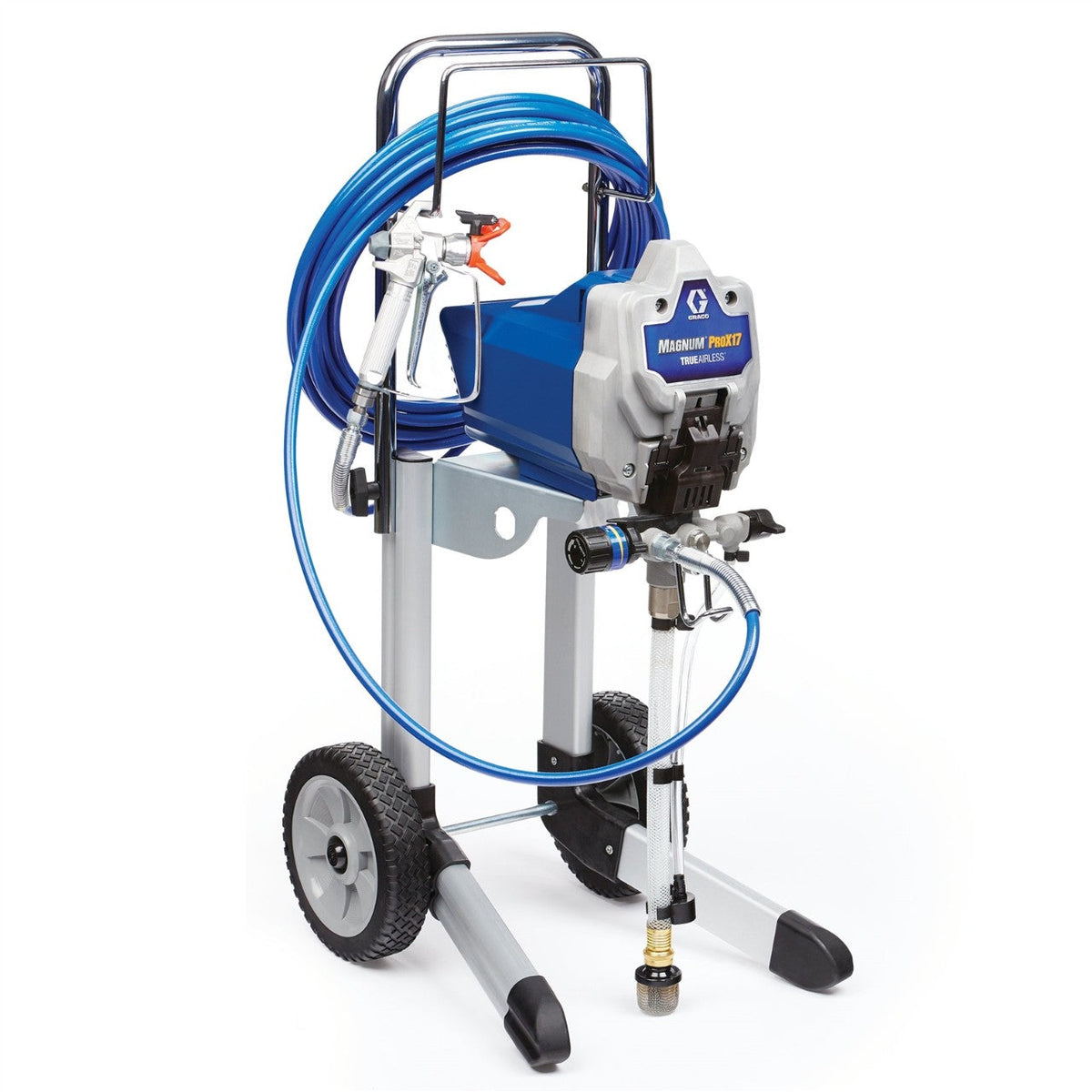

Graco Magnum ProX17 Electric TrueAirless Sprayer, Cart, 17G178

The Graco Magnum ProX17 (17G178) is a cart-mounted electric TrueAirless paint sprayer built for property maintenance pros, remodelers, and general contractors working on interior, rental, and large home projects.

Key Features

• ProX stainless steel piston pump for reliability and long life
• ProXChange pump system for no-tools pump replacement on the job
• DC motor that supports longer extension cords and up to 150 ft of airless hose
• SG3 metal spray gun with a hose swivel for managing longer hoses
• TrueAirless tip with SoftSpray Technology for control and less overspray
• Built-in cart for moving around the job site
• Adjustable pressure control
• InstaClean pump filter to reduce tip clogging

Technical Data

• Voltage/Phase: 120V / Single
• Amperage: 8A
• Power rating: 559W (0.75 HP)
• Max working pressure: 3000 psi (20.7 MPa)
• Max flow rate: 0.34 GPM (1.3 L/min)
• Compatible tip sizes: 0.009-0.017 in
• Max hose length: 150 ft (45 m)
• Fluid outlet: 1/4 in NPSM
• Inlet strainer: 35 mesh stainless steel
• Dimensions (H x L x W): 37.0 x 19.6 x 15.2 in
• Weight: 38 lb
• Recommended annual usage: 300 gal

What's Included

• SG3 Metal Spray Gun (243012)
• TrueAirless 515 Spray Tip (TRU515)
• Spray Tip Guard (237859)
• DuraFlex Hose, 1/4 in x 50 ft (247340)
• Pump Armor Storage Fluid, 8 oz (25M568)
• Quick Start-Up Guide

Compatible With

• Spray Tip Extension, 20 in (243042)
• TrueAirless 517 Spray Tip (TRU517)
• Pump Armor, 1 qt (243104)
• Pressure Roller Kit (244512)
• Inlet Strainer (288716)

Buy in Markham

Sold by GTA Paint & Decor, an authorized Graco dealer, 8855 Woodbine Ave Unit C6, Markham, ON L3R 5G1. Not sure it is the right one for your job? Call (905) 415-8827 or visit us in store.

Operation Manual (X017686A)
