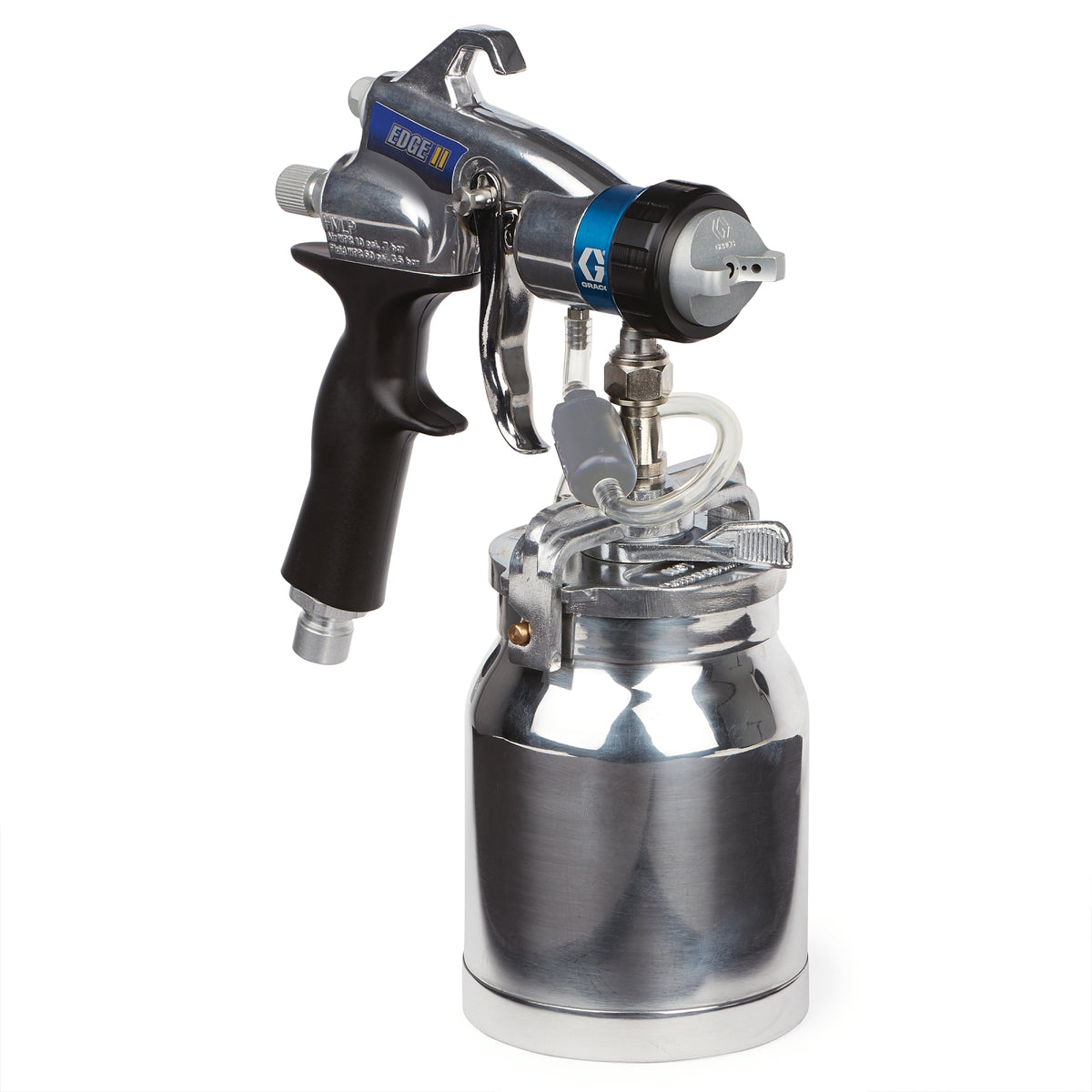

Graco EDGE II HVLP Spray Gun with Metal Cup, 17P653

The Graco EDGE II HVLP Spray Gun with Metal Cup (17P653) is a high-performance HVLP fine-finish spray gun built for use with Graco FinishPro HVLP turbines.

Key features

• Integrated flow control: one knob adjusts material and air flow, with 360° rotation and an indicator for repeatable settings
• Adjustable air cap: three-position rotation changes the spray pattern
• Quick Clean check valve lets in more air pressure for heavier materials, and can be cleaned and reused instead of replaced
• EasyGlide two-finger trigger and ergonomic handle — Graco states up to 75% lighter trigger pull than competitors
• Quick Release needle changes from the front of the gun without tools

Technical data

• Gun type: HVLP, manual activation, two-finger trigger
• Weight: 20 oz
• Compatible materials: varnish, enamel, latex, stains
• Max air inlet pressure: 13 psi (0.07 MPa / 0.7 bar)
• Max air pressure: 10 psi (0.07 MPa / 0.7 bar)
• Max fluid pressure: 50 psi (0.35 MPa / 3.5 bar)
• Sound power / pressure level: 65.0 dB(A)

What's included

• 1 qt (0.95 L) metal cup
• #3 Quick Release fluid set

Compatible with

• Graco FinishPro HVLP Sprayers

Buy in Markham

Sold by GTA Paint & Decor, an authorized Graco dealer, 8855 Woodbine Ave Unit C6, Markham, ON L3R 5G1. Not sure it is the right one for your job? Call (905) 415-8827 or visit us in store.

Manual: 3A4980B, HVLP Edge II / Edge II Plus Gun, Operation, Parts
