Festool, Cordless Table Saw with Energy Set, CSC SYS 50 EBI-Plus, 577378
Festool, Cordless Table Saw with Energy Set, CSC SYS 50 EBI-Plus, 577378
Select Set
• Cordless Table Saw CSC SYS 50 EB-Basic, 576821
• Cordless Table Saw CSC SYS 50 EB-Basic-Set with Underframe UG, 577372
• Cordless Table Saw CSC SYS 50 EBI-Set with Energy Set & Underframe UG, 577383
The ultimate in portable precision. The cordless table saw that fits in a Systainer. The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm) and bevel cuts of -2° to 47°.
Main applications
- Cross-cuts up to 17-3/4" (450 mm) wide, quick and precise with the integrated slide
- Rip cutting up to a cutting height of 1-7/8" (48 mm) and a width of 11" (280 mm) with a secure support on the integrated fold-out table
- Bevel cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 13/16" - 1-1/4" (21–32 mm) thanks to the tilting saw blade
- Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm (1/256") and controllable via a display
- Transport easily in the integrated Systainer format

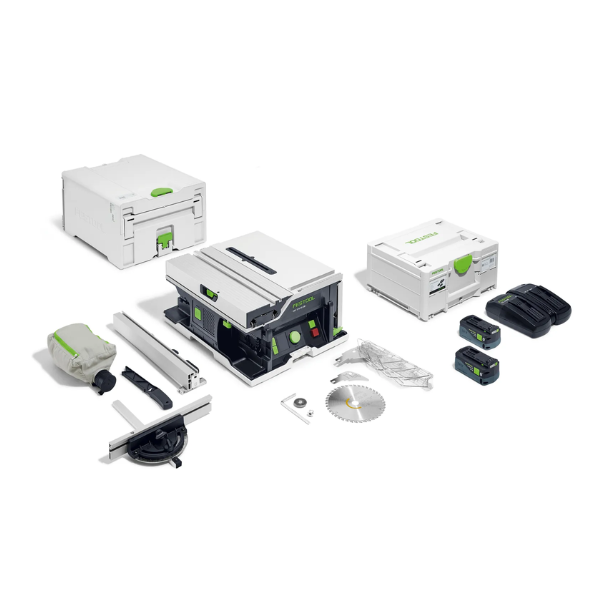

Contains
- Saw Blade, HW 160x1,8x20 WD42
- Rip Fence
- Push Stick
- Miter Gauge
- Dust Bag, SB-CSC SYS
- Riving Knife
- Blade Guard and Splitter
- Hex Key 6 mm
- Energy Set, SYS 18V 2x5,0/TCL 6 DUO
More Details
More Details
The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256"). The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.
- Versatile: Parallel cuts up to 11" (280 mm); cross cut width of up to 17-3/4" (450 mm). Bevel cuts from -2° to 47°
- Practical: At a cutting height of up to 1-3/8" (35 mm), through to bevel cuts down to -10°; ideal for back-beveling filler strips
- Compact and mobile: Can be easily carried with one hand neatly stored in a Systainer format. Even easier to transport with the wheeled UG-CSC-SYS underframe
- Extreme precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter (1/256")
- Repeatable cuts are easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Repeatable cuts are a sure thing
- Convenient: Four saw blade positions can be saved and selected via the digital display
- Highly precise rip fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
- Highly precise angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70° and +70°
- Absolutely smooth-sliding action: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
- Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing and perfect cutting results
- Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long runtime
- Long-lasting: The brushless EC-TEC motor is long-lasting, durable and maintenance-free
- Work appropriately for the material: With saw blades for nearly every material; speeds appropriate for the material can be preselected via the digital display
- Dust-free: Chip collection bag for practically dust-free work, even without a mobile dust extractor
- Cleaner working with a system: Ideal also in combination with the Festool cordless extractors
- Compatible: Fits together with the entire Festool Systainer system and Systainer Systems van racking equipment

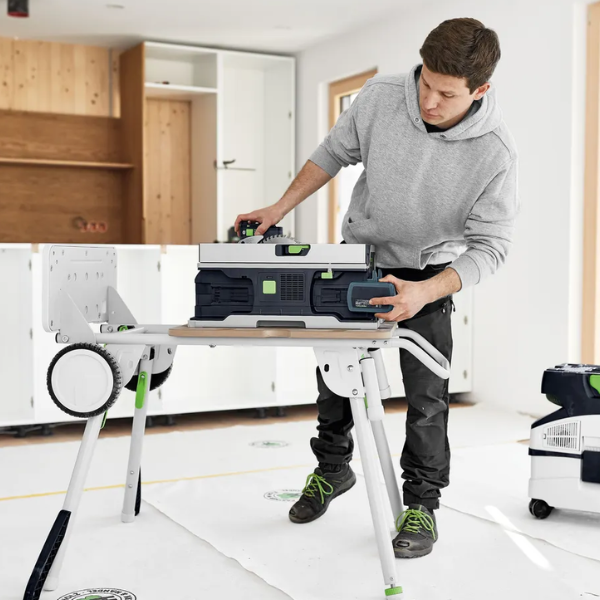

- Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
- Unique: Three-year warranty for battery packs and chargers too
Technical data
Technical data
- Battery voltage: 2 x 18 V
- Idle engine speed: 4 500 – 6 800 RPM
- Inclination angle: -10 - +47 °
- Mitre angle: 0 - 70 °
- Drive type: Battery
- Battery capacity: 5.00 Ah
- Weight: 33.08 lbs (15 kg)
- Dust extraction connection dia.: 1-1/16" (27 mm)
- Dimensions (L x W x H): 20-5/32" x 15-19/32" x 11-21/32" (512 x 396 x 296 mm)
- Cutting depth 45°: 0 - 1-11/32" (0 - 34 mm)
- Cutting height 0°: 0 - 1-7/8" (0 - 48 mm)
- Saw blade location hole: 3/4" (20 mm)
- Parallel cut width: 11" (280 mm)
- Tabletop height: 11" (228 mm)
- Cutting height -10°: 13-16" - 1-1/4" (21 - 32 mm)
Warranty All-inclusive
Warranty All-inclusive
Enjoy comprehensive services with our warranty all-inclusive. 1 year of warranty with the purchase of your tool. 2 more years for free if you register within 30 days of purchase.
